HYUNDAI TIG WELDING ELECTRODES

MILD STEELTig rods
70S-G Sizes: 1.6mm, 2.0mm, 2.4mm

70S-6 Sizes: 1.6mm, 2.0mm, 2.4mm

ER80SD-2 Sizes: 2.00mm, 2.4mm

ER90-SG Sizes: 2.4mm

STAINLESS STEEL

ST-308L is a filler rod for TIG welding with pure Ar gas. As the weld metal contains ferrite, its crack resistibility is excellent. Both its bead appearance and weldability are good. The corrosion resistibility and intergranular corrosion, resistibility are extremely excellent. Furthermore, resistance to corrosion and mechanical properties is good. Size 1.6mm, 2.0mm, 2.4mm

ST-309L is a filler rod for TIG welding with pure Ar gas. As the weld metal contains ferrite, its crack resistibility is excellent. Furthermore, resistance to corrosion and heat is extremely good. Sizes:1.6mm, 2.4mm

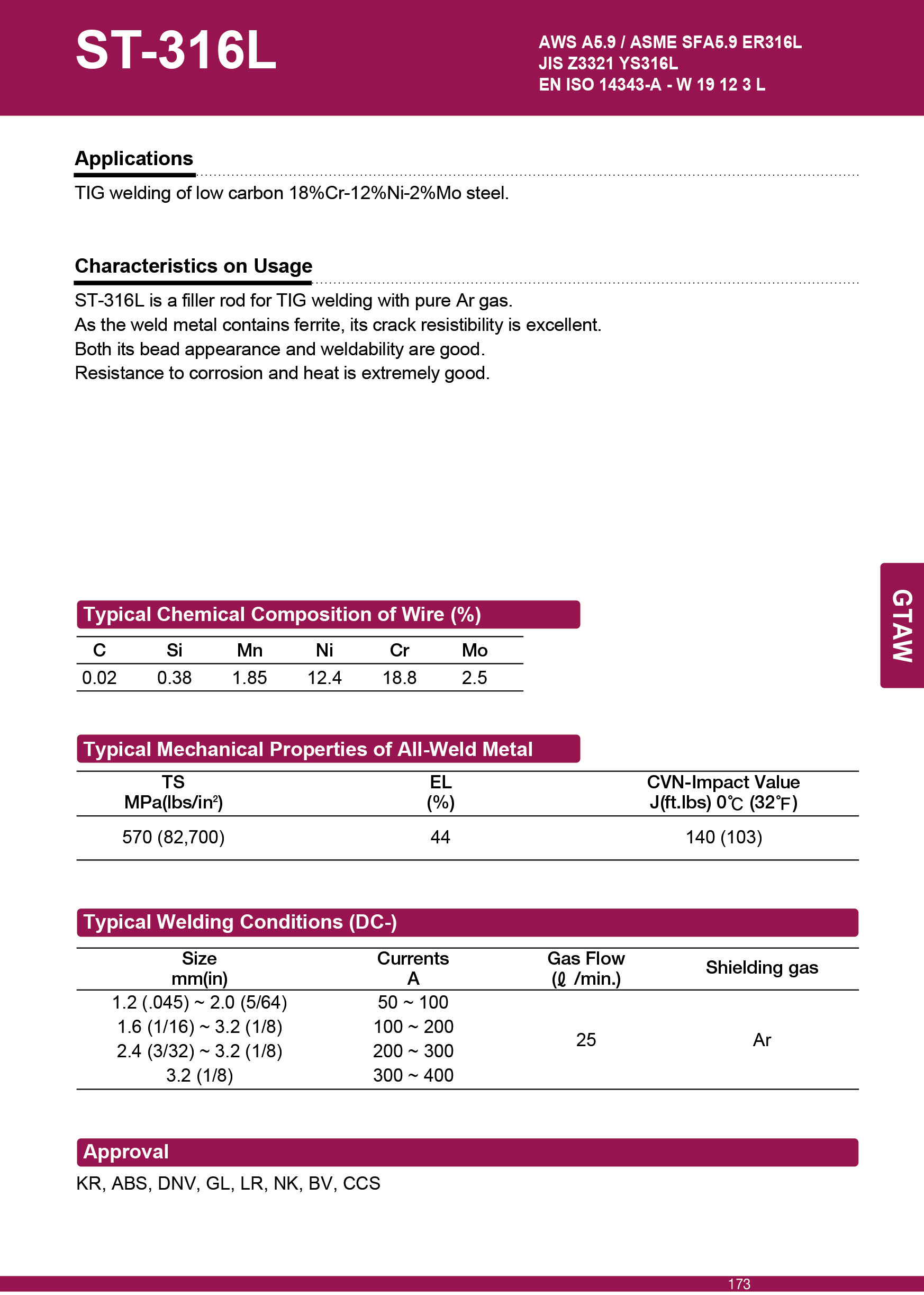

Though ST-316L is austenitic type stainless steel wire, the weld metal contains ferrite and resistance to crack is quite good.  The usability, such as, arc stability and assimilability of welds to base metal is good. Resistance to corrosion and heat is quite good. Sizes: 1.6mm, 2.0mm, 2.4mm, 3.2mm

SM-2209 - Duplex stainless steel pipes, plates, fittings and forgings have an approximate 50:50 microstructure of austenite with a ferrite matrix.Preheat not generally required. Interpass temperature 100 ~ 150℃max, heat input in the range 0.5 ~ 1.5KJ/min - depending on material thickness. Good general corrosion resistance in a range of environments.High resistance to chloride induced stress corrosion cracking (CSCC).

ALUMINIUM TIG
4043 (5% SIL) Sizes: 1.6mm, 2.0mm, 2.4mm

5356 (5% Mg) Sizes: 1.6mm, 2.0mm, 2.4mm

BRONZE BRAZING RODS
Sizes: 1.6mm, 2.0mm, 2.4mm

COPPER COATED RODS
Sizes: 1.6mm, 2.0mm, 2.4mm
